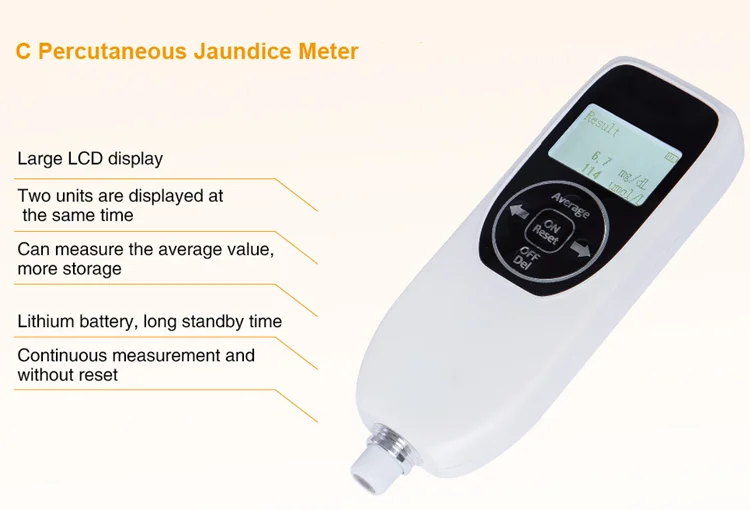

JQ-HC Portable neonatal jaundice meter for accoucheur neonatologist pediatrician Bilirubin Analyzer

The JQ-HD Percutaneous Jaundice Tester manufactured by our company can measuring the venous serum bilirubin percutaneous via using optical fiber technology, photoelectric technology, electronic technique and data processing. It only needs to use the probe of the machine touch the forehead skin of the newborn, then can measuring the date directly and correctly.

Advantages
1.make measurement without ache and without injure.
2.with smaller size and lower weight, easy to operate, convenient and safe use, easy to carry.
3.easy promotion to the neonatology department of all levels of hospital for serum bilirubin values percutaneous dynamic
monitoring of the newborn.

Technical parameters:
1). Measurement: light reflective
2). LED；Light source: LED
3). Display: LCD
4). Indication error: 0 ~ 25 mg / dL ± 1.0 mg / dL
5). Power: Lithium battery DC3.7V、≥1500mAh, after a fully charged can use more than 800 times;
6). Check color screen: white end face is 0, the yellow end face 16.0 ± 1.0
Main Function
1).Can display mg / dL, μmol / L two data in the meantime.

2).Data storage: 200 measuring data.

3).Calculating the average function:Display “AVERAGE(n)” data, units.

“（n）”is 2-5 times,the data is increasing;The previous data can also be cleaned up,
“（n）”is retreated 1,the data is retreated simultaneously;
“（n）”is 1or5,the previous data cannot be removed.

4). Open Preparation time: boot, no need to prepare.

5).Battery voltage detection function:it will be displayed “Low Battery”when the battery voltage is too low.

6). Automatic shutdown after the non-working state, for 10 minutes: automatic shutdown function.

7). Battery display: Top right corner of the viewing screen display Battery usage ( 100%、75%、50%、25%、0%)。

8). Charging display: The viewing screen will be lighten and displayed “Charging…” during charging.

9). Charging automatic protection function: It will stop charging automatically at the time battery voltage charging arrive
4.2V±0.05V.
