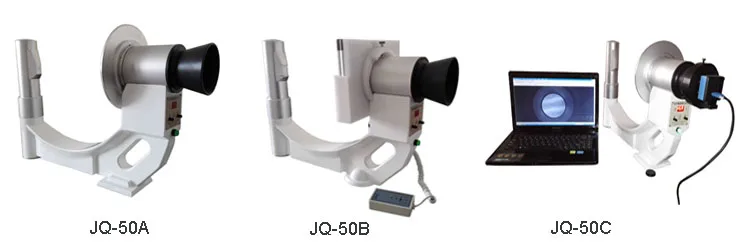

JQ-50A X-ray image scope with direct Perspective for Detection of foreign bodies in precious Chinese herbal medicines

Product Introduction

Features

1. Small size, light weight, easy to carry
2. Low radiation dose, no need for protection, user safety
3. Adopt High-performance vacuum ceramic image intensifier work out high resolution and clear image

4. No need darkroom, direct perspective, instant observation

Technical performance

Effective view field:Ф50mm with image enhancer
Observe thickness ≤300mm
Output Screen Brightness≥25cd/㎡
X-ray Tube Voltage:45-70kv adjustable
Tube Voltage error ±10%
X-ray Tube Current:0.25~0.5mA continuously adjustable
Deviation of focus position from reference axis ±1mm
Tube current error ±20%
Image resolution ≥ 40lp/cm
Gray level ≥7
Contrast :4%
X-ray Leakage Rate ≤1.0 mgy/h

Environmental conditions

Temperature 10℃~40℃
Relative humidity ≤75%
Atmospheric pressure 700hpa~1060hpa


Power conditions

Power supply : AC220V/50Hz
Power consumption ≤200W
Max allowable value of the power supply network resistance is 0.5Ω
Power supply network overcurrent release 1 A
